【美標固定式球閥概述】
美標固定式球閥在石油、天然氣、煤炭和礦石的開采、提煉加工和管道輸送系統中；在化工產品、醫藥和食品生產種；在水電、火電和核電的電力生產系統中；在城市和工業企業的給排水、供熱、和供氣系統中；在農田的排灌系統中；在治金生產系統中得以廣泛的應用，是一種與生產建設、國防建設和人民生活息息相關的重要機械產品。球閥密閉在各類管路系統種用于截斷或接通介質流，使介質按照預定的程序輸送到各個指定點。
【美標固定式球閥引用標準】
設計制造按:AP16D/ANSB16.34,GB12237-89
結構長度按:AP16D/ANSIB16.10,GB12221-89
法蘭尺寸按:ANSIB16.5,JB79-59,GB9113-88
檢查試驗按:AP16d/AP1598 ZBJ16006
使用溫度:-28～150℃(標準型)-28～350℃(高溫)低溫(請注明溫度)
Applying specification
Design and manufacturing conform to:AP16D/ANSB16.34,GB12237-89
The face fo face dimensions conform fo:AP16D/ANSIB16.10,GB12221-89
The dimensions of flangesconform:ANSIB16.5,JB79-59,GB9113-88
Inspectionand Test conform to:AP16d/AP1598 ZBJ16006
Working temperature:-28～150℃(Standard typi) -28～350℃(High temperature type)
Please advise temperature degree for low temperature of Main Part:
【美標固定式球閥主要零部件材料】
| 名稱Part |
WCB類 |
CF8類 |
CF3類 |
CF8M類 |
CF3M類 |
| 閥體左體Body&Body cap |
A216-WCB |
A315-CF8 |
A35-CF3 |
A351-CF8M |
A351-CF3M |
| 球體Ball |
B2-B8 |
A105-1025 |
A182-F304L |
A182-F304L |
A132-F316 |
A182-F316L |
| B8以上 |
A216-WCB |
A351-CF8M |
A351-CF3 |
A351-CF8M |
A351-CF3M |
| 閥桿Steml |
A182-F6a |
A182-F304 |
A182-F304L |
A182-F336 |
A182-F316L |
| 閥座Seat |
PTFE/增強PTFE/NYLIV PTFE/Reinforced PTFE/Nyion |
| 閥座支承圈Seat Retainer |
A105-1025 |
A182-F304 |
A182-F304L |
A182-F316 |
A182-F316L |
| 彈簧Spring |
|
3yc-7/17-49H |
| O形圈O-RING |
NBR |
氟橡膠Viton |
| 螺柱Stud |
A193-B7 |
A193-B8 |
| 螺母Nut |
A194-2H |
A194-8 |
【美標固定式球閥性能規范】
| 壓力等級 |
公稱壓力(PN) |
磅級(Class) |
| 1.6 |
2.5 |
4.0 |
6.4 |
10.0 |
150 |
300 |
400 |
600 |
試驗壓力
|
殼體試驗
|
2.4 |
3.75 |
6.0 |
9.6 |
15.0 |
3.03 |
7.5 |
10.2 |
15.0 |
密封試驗
|
1.76 |
2.75 |
4.4 |
7.04 |
11.0 |
2.2 |
5.5 |
7.48 |
11.0 |
| 適用工況 |
適用介質 |
紙漿、漿料、粉塵及含各種固體顆粒的介質 |
| 適用溫度 |
-196～≤550℃ |
適用規范
|
設計制造按 |
GB12237-89 |
API 6D |
JP17S-48 |
法蘭尺寸按
|
JB79-59、GB9113 、HG20592-07 |
ANSI B16.5 |
JIS B2212-2214 |
結構長度按
|
GB12221-89 |
ANSI B16.10 |
JIS B2002 |
檢驗試驗按
|
|
JB/T9092-99 |
API 598 |

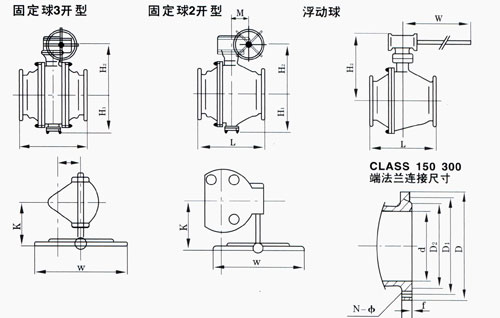

【美標固定式球閥結構圖】
【美標固定式球閥主要連接尺寸】
CLASS 150
| DN |
d |
L |
LB焊接
Welding |
H1 |
H2 |
W |
M |
K |
D2 |
D1 |
D |
N-φ |
b |
f |
重量
kgf |
備注
Remark |
| 1/2" |
13 |
108 |
- |
- |
59 |
130 |
- |
- |
35 |
60.5 |
89 |
4-16 |
11.2 |
1.6 |
2.3 |
浮動球
Float
BaLL |
| 3/4" |
19 |
117 |
- |
- |
63 |
130 |
- |
- |
43 |
70 |
98 |
4-16 |
11.2 |
1.6 |
3.0 |
| 1" |
25 |
127 |
- |
- |
75 |
160 |
- |
- |
51 |
79.5 |
108 |
4-16 |
11.2 |
1.6 |
4.5 |
| 1 1/2" |
38 |
165 |
190 |
- |
95 |
230 |
- |
- |
73 |
98.5 |
127 |
4-16 |
14.3 |
1.6 |
7.0 |
| 2" |
51 |
178 |
216 |
- |
107 |
230 |
- |
- |
92 |
120.5 |
152 |
4-19 |
15.9 |
1.6 |
9.5 |
固定球
Fixing
BaLL
浮動球
Float
Ball |
| 2 1/2" |
61 |
190 |
241 |
- |
142 |
400 |
- |
- |
105 |
139.5 |
178 |
4-19 |
17.5 |
1.6 |
15.0 |
| 3" |
76 |
203 |
283 |
- |
152 |
400 |
- |
- |
127 |
152.5 |
190 |
4-19 |
19.1 |
1.6 |
19.0 |
| 4" |
102 |
229 |
305 |
- |
178 |
700 |
- |
- |
157 |
190.5 |
229 |
8-19 |
23.9 |
1.6 |
33.0 |
| 5" |
127 |
356 |
- |
- |
252 |
1100 |
- |
- |
186 |
216 |
254 |
8-22 |
23.9 |
1.6 |
58.0 |
| 6" |
52 |
394 |
457 |
- |
272 |
1100 |
- |
- |
216 |
241.5 |
279 |
8-22 |
54.5 |
1.6 |
93.0 |
| 8" |
203 |
457 |
521 |
- |
342 |
1500 |
- |
- |
270 |
298.5 |
343 |
8-22 |
58.6 |
1.6 |
160.0 |
| 8" |
203 |
457 |
521 |
- |
398 |
600 |
115.5 |
350 |
270 |
298.5 |
343 |
8-22 |
28.6 |
1.6 |
180.0 |
固定球
Float
Ball |
| 10" |
254 |
533 |
559 |
335 |
495 |
600 |
115.5 |
350 |
324 |
362 |
406 |
12-25 |
30.2 |
1.6 |
240.0 |
| 12" |
305 |
610 |
635 |
385 |
580 |
800 |
171 |
420 |
381 |
431.8 |
482.6 |
12-25 |
31.8 |
1.6 |
390.0 |
| 14" |
337 |
686 |
762 |
430 |
325 |
800 |
171 |
420 |
412.8 |
476 |
535 |
12-29 |
35 |
1.6 |
510.0 |
| 16" |
387 |
162 |
838 |
470 |
720 |
800 |
257 |
400 |
469.9 |
539.5 |
597 |
16-29 |
36.6 |
1.6 |
750.0 |
| 20" |
489 |
914 |
991 |
590 |
840 |
800 |
257 |
400 |
58.2 |
635 |
698 |
20-32 |
42.9 |
1.6 |
1190 |
| 24" |
591 |
1067 |
1143 |
700 |
1050 |
800 |
150 |
410 |
692.2 |
749.5 |
813 |
20-35 |
47.8 |
1.6 |
2100 |
| 26" |
686 |
1245 |
1346 |
780 |
1150 |
800 |
83 |
650 |
800.1 |
836.6 |
927.1 |
28-35 |
71.4 |
1.6 |
3000 |
CLASS 300
| DN |
d |
L |
LB焊接
Welding |
H1 |
H2 |
W |
M |
K |
D2 |
D1 |
D |
N-ф |
b |
f |
重量
kgf |
備注
Remark |
| 1/2" |
13 |
140 |
- |
- |
59 |
130 |
- |
- |
35 |
66.5 |
95 |
4-16 |
14.2 |
1.6 |
2.5 |
浮動球
Fixing
Ball |
| 3/4" |
19 |
452 |
- |
- |
63 |
130 |
- |
- |
43 |
82.5 |
117 |
4-19 |
15.9 |
1.6 |
3.5 |
| 1" |
25 |
165 |
- |
- |
75 |
160 |
- |
- |
51 |
89 |
124 |
4-19 |
17.5 |
1.6 |
5.5 |
| 1 1/2" |
38 |
190 |
190 |
- |
95 |
230 |
- |
- |
73 |
114.5 |
156 |
4-22 |
20.7 |
1.6 |
10.5 |
| 2" |
51 |
216 |
216 |
- |
107 |
230 |
- |
- |
92 |
127 |
165 |
8-19 |
22.3 |
1.6 |
14.5 |
固定球
FixingBall
浮動球
Float Ball |
| 2 1/2" |
61 |
241 |
241 |
- |
142 |
400 |
- |
- |
105 |
149 |
190 |
8-22 |
25.4 |
1.6 |
23.5 |
| 3" |
76 |
283 |
283 |
- |
152 |
400 |
- |
- |
127 |
168 |
210 |
8-22 |
28.6 |
1.6 |
30.0 |
| 4" |
102 |
305 |
305 |
- |
178 |
700 |
- |
- |
157 |
200 |
254 |
8-22 |
31.8 |
1.6 |
55.0 |
| 5" |
127 |
381 |
- |
- |
252 |
1100 |
- |
- |
186 |
235 |
279 |
8-22 |
35 |
1.6 |
81.0 |
| 6" |
52 |
403 |
457 |
- |
272 |
1100 |
- |
- |
216 |
270 |
318 |
12-22 |
36.5 |
1.6 |
118.0 |
| 8" |
203 |
502 |
521 |
- |
342 |
1500 |
- |
- |
270 |
330 |
381 |
12-25 |
41.3 |
1.6 |
200.00 |
| 8" |
203 |
502 |
521 |
|
398 |
600 |
115.5 |
350 |
270 |
330 |
381 |
12-25 |
41.3 |
1.6 |
220.0 |
固定球
Fixing
Ball |
| 10" |
254 |
568 |
559 |
335 |
495 |
600 |
115.5 |
350 |
324 |
387.5 |
444 |
16-29 |
17.7 |
1.6 |
365 |
| 12" |
305 |
648 |
635 |
385 |
580 |
800 |
171 |
420 |
381 |
451 |
520.8 |
16-32 |
50.8 |
1.6 |
530 |
| 14" |
337 |
762 |
762 |
430 |
325 |
800 |
171 |
420 |
412.8 |
514.5 |
584.2 |
20-32 |
53.8 |
1.6 |
740 |
| 16" |
387 |
838 |
838 |
470 |
720 |
800 |
257 |
400 |
469.9 |
571.5 |
647.8 |
20-35 |
57.2 |
1.6 |
1030 |
| 20" |
489 |
991 |
991 |
590 |
840 |
800 |
257 |
400 |
58.2 |
685.8 |
774.8 |
24-35 |
63.5 |
1.6 |
1540 |
| 24" |
591 |
1143 |
1143 |
700 |
1050 |
800 |
150 |
410 |
692.2 |
812.8 |
914.4 |
24-41 |
69.8 |
1.6 |
2600 |
| 28" |
686 |
1346 |
1346 |
780 |
1150 |
800 |
83 |
650 |
800.1 |
939.8 |
1035 |
28-44.5 |
85.9 |
1.6 |
3900 |
CLASS 400
| DN |
d |
L |
LB焊接
Welding |
H1 |
H2 |
W |
M |
K |
D2 |
D1 |
D |
N-ф |
b |
f |
重量
kgf |
備注
Remark |
| 1/2" |
13 |
165 |
160 |
- |
59 |
130 |
- |
- |
35 |
66.5 |
95 |
4-16 |
14.3 |
6.4 |
6.5 |
浮動球
Float
Ball |
| 3/4" |
19 |
190 |
190 |
- |
63 |
160 |
- |
- |
43 |
82.5 |
117 |
4-19 |
15.9 |
6.4 |
9 |
| 1" |
25 |
216 |
216 |
- |
75 |
160 |
- |
- |
51 |
89 |
124 |
4-19 |
17.5 |
6.4 |
13 |
| 1 1/2" |
38 |
241 |
241 |
- |
95 |
230 |
- |
- |
73 |
114.5 |
156 |
4-22 |
22.3 |
6.4 |
16.5 |
| 2" |
51 |
292 |
292 |
- |
107 |
700 |
- |
- |
92 |
127 |
165 |
8-19 |
25.4 |
6.4 |
25 |
固定球
FixingBall
浮動球
Float Ball |
| 4" |
102 |
406 |
406 |
- |
178 |
700 |
- |
- |
157.2 |
200 |
254 |
8-25 |
35 |
6.4 |
66 |
| 6" |
152 |
495 |
495 |
250 |
300 |
600 |
116.5 |
350 |
216 |
270 |
317.5 |
12-25 |
41 |
6.4 |
145 |
| 8" |
203 |
597 |
597 |
294 |
374 |
800 |
171 |
400 |
269.8 |
330 |
381 |
12-28.5 |
47.8 |
6.4 |
250 |
固定球
Fixing
Ball |
| 10" |
254 |
673 |
673 |
370 |
445 |
800 |
171 |
420 |
324 |
387.5 |
445 |
16-32 |
53.8 |
6.4 |
540 |
| 12" |
305 |
762 |
762 |
420 |
515 |
800 |
257 |
400 |
381 |
451 |
521 |
16-35 |
57 |
6.4 |
780 |
| 14" |
337 |
826 |
826 |
460 |
550 |
800 |
257 |
400 |
413 |
514.5 |
584 |
20-35 |
60.5 |
6.4 |
1000 |
| 16" |
387 |
902 |
902 |
505 |
615 |
800 |
257 |
400 |
470 |
571.5 |
648 |
20-38 |
63.5 |
6.4 |
1300 |
| 20" |
489 |
1054 |
1054 |
630 |
810 |
800 |
159 |
410 |
584.2 |
686 |
775 |
24-41 |
69.8 |
6.4 |
2100 |
| 24" |
591 |
1232 |
1232 |
685 |
845 |
800 |
180 |
565 |
692.2 |
812.8 |
915 |
24-48 |
76 |
6.4 |
3400 |
| 28" |
686 |
1397 |
1397 |
860 |
1087 |
800 |
200 |
575 |
800 |
939.8 |
1035 |
28-51 |
95.3 |
6.4 |
5000 |
CLASS 600
| DN |
d |
L |
LB焊接
Welding |
H1 |
H2 |
W |
M |
K |
D2 |
D1 |
D |
N-ф |
b |
f |
重量
kgf |
備注
remark |
| 1/2" |
13 |
165 |
165 |
- |
59 |
160 |
- |
- |
35 |
56.5 |
95 |
4-16 |
14.3 |
6.4 |
7.5 |
浮動球
Float
Ball |
| 3/4" |
19 |
190 |
190 |
- |
63 |
160 |
- |
- |
43 |
82.5 |
117 |
4-19 |
15.9 |
6.4 |
10.5 |
| 1" |
25 |
216 |
216 |
- |
75 |
230 |
- |
- |
51 |
89 |
124 |
4-19 |
17.5 |
6.4 |
14.5 |
| 1 1/2" |
38 |
241 |
241 |
- |
95 |
400 |
- |
- |
73 |
114.5 |
156 |
4-22 |
22.3 |
6.4 |
18.5 |
| 2" |
51 |
292 |
292 |
- |
107 |
700 |
- |
- |
92 |
127 |
165 |
8-19 |
25.4 |
6.4 |
25 |
固定球
FixingBall
浮動球
Float Ball |
| 4" |
102 |
432 |
432 |
- |
178 |
1100 |
- |
- |
157.2 |
216 |
273 |
8-25 |
38 |
6.4 |
76 |
| 6" |
152 |
559 |
559 |
250 |
300 |
600 |
116 |
350 |
216 |
282.1 |
355.6 |
12-29 |
47.2 |
6.4 |
127 |
| 8" |
203 |
660 |
660 |
294 |
374 |
800 |
171 |
400 |
269.8 |
349.2 |
419.5 |
12-32 |
55.7 |
6.4 |
350 |
固定球
Fixing
Ball |
| 10" |
254 |
787 |
787 |
370 |
445 |
800 |
171 |
420 |
324 |
431.8 |
508 |
16-35 |
63.5 |
6.4 |
660 |
| 12" |
305 |
838 |
838 |
42 |
515 |
800 |
257 |
400 |
381 |
489 |
559 |
20-35 |
66.5 |
6.4 |
820 |
| 14" |
337 |
889 |
889 |
460 |
550 |
800 |
257 |
400 |
413 |
527 |
603.2 |
20-38 |
69.8 |
6.4 |
1130 |
| 16" |
387 |
991 |
991 |
505 |
615 |
800 |
257 |
400 |
470 |
603.2 |
686 |
20-41 |
76.2 |
6.4 |
1550 |
| 20" |
489 |
1194 |
1194 |
630 |
810 |
800 |
150 |
410 |
584.2 |
724 |
818 |
24-44.5 |
89 |
6.4 |
2800 |
| 24" |
591 |
1397 |
1397 |
825 |
1010 |
800 |
83 |
650 |
692.2 |
838.2 |
940 |
24-51 |
101.6 |
6.4 |
5300 |
| 28" |
686 |
1549 |
1549 |
970 |
1180 |
800 |
123 |
800 |
800 |
965.2 |
1073 |
28-55 |
111.3 |
6.4 |
6500 |
【美標固定式球閥操作和使用】
1）操作前須確認管路和閥已被沖洗過。
2）當執行機構方向指示箭頭與管線平行時，閥門為開啟狀態；指示箭頭與管線垂直時，閥門為關閉狀態。
3） 安裝在保溫管道上的各類手動球閥，手柄均不得向下。
4） 安裝位置、高度、進出口方向必須符合設計要求，連接應牢固緊密。
訂貨須知：
一、①美標固定式球閥產品名稱與型號②美標固定式球閥口徑③美標固定式球閥是否帶附件以便我們的為您正確選型。
二、若已經由設計單位選定正鋼閥門美標固定式球閥型號，請按美標固定式球閥型號直接向我司銷售部訂購。
三、當使用的場合非常重要或環境比較復雜時,請您盡量提供設計圖紙和詳細參數，由我們的正鋼閥門專家為您審核把關。
感謝您向我們發出訂單我們會在最短時間與您聯系!
